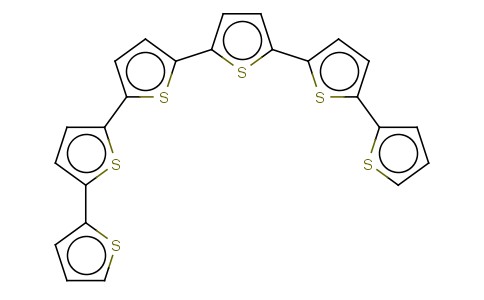

| Name： | ALPHA-SEXITHIOPHENE |
| CAS： | 88493-55-4 |
| Synonyms： | A-SEXITHIOPHENE ; SEXITHIOPHENE ; 6T ; 2,2':5',2'':5'',2''':5''',2'''':5'''',2'''''-SEXITHIOPHENE ; A-6-T ; ALPHA-SEXITHIOPHENE |
| MDL.： | MFCD03695488 |
| H bond acceptor： | 0 |
| H bond donor： | 0 |
| Smile： | c1cc(sc1)c2ccc(s2)c3ccc(s3)c4ccc(s4)c5ccc(s5)c6cccs6 |
| InChi： | InChI=1S/C24H14S6/c1-3-15(25-13-1)17-5-7-19(27-17)21-9-11-23(29-21)24-12-10-22(30-24)20-8-6-18(28-20)16-4-2-14-26-16/h1-14H |
| InChiKey： | InChIKey=KUJYDIFFRDAYDH-UHFFFAOYSA-N |
Property |
|
| Melting Point： | 290 DEG C (DEC)(LIT) |
| Comments： | FORM: SOLID OPV DEVICE PERFORMANCE: ITO/6T/C60/BCP/MG:AG1,SHORT-CIRCUIT CURRENT DENSITY (JSC): 0.8 MA/CM2,OPEN-CIRCUIT VOLTAGE (VOC): 0.4 V. FILL FACTOR (FF): 0.46,POWER CONVERSION EFFICIENCY (PCE): 0.52% OPV DEVICE PERFORMANCE: ITO/6T/C70/BCP/MG:AG1,SHORT-CIRCUIT CURRENT DENSITY (JSC): 4.1 MA/CM2,OPEN-CIRCUIT VOLTAGE (VOC): 0.41 V. FILL FACTOR (FF): 0.55,POWER CONVERSION EFFICIENCY (PCE): 0.92% OPV DEVICE PERFORMANCE: ITO/6T:C70 (1:5)/BCP/MG:AG1,SHORT-CIRCUIT CURRENT DENSITY (JSC): 9.2 MA/CM2,OPEN-CIRCUIT VOLTAGE (VOC): 0.58 V. FILL FACTOR (FF): 0.45,POWER CONVERSION EFFICIENCY (PCE): 2.38% ORBITAL ENERGY: HOMO 5.3 EV (OPT) ORBITAL ENERGY: LUMO 3.1 EV (OPT) SEMICONDUCTOR PROPERTIES: P-TYPE (MOBILITY=0.075 CM2/V S) UNSPSC: 12162002 WGK: 3 |
Safety information |
|
| Symbol： |
GHS07
|
| Signal word： | Warning |
| Hazard statements： | H319 |
| Precautionary statements： | P305 + P351 + P338 |
| hazard symbol： | Xi |
| Risk Code： | R:36 |
| Safe Code： | S:26-36 |
| WGK Germany： | 3 |
